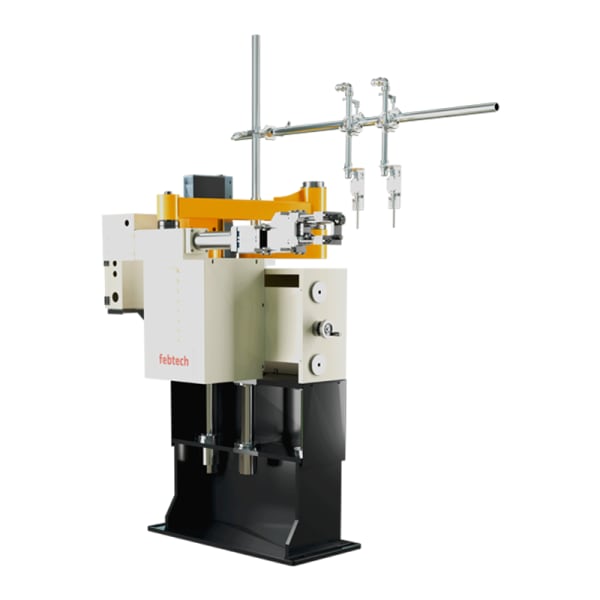

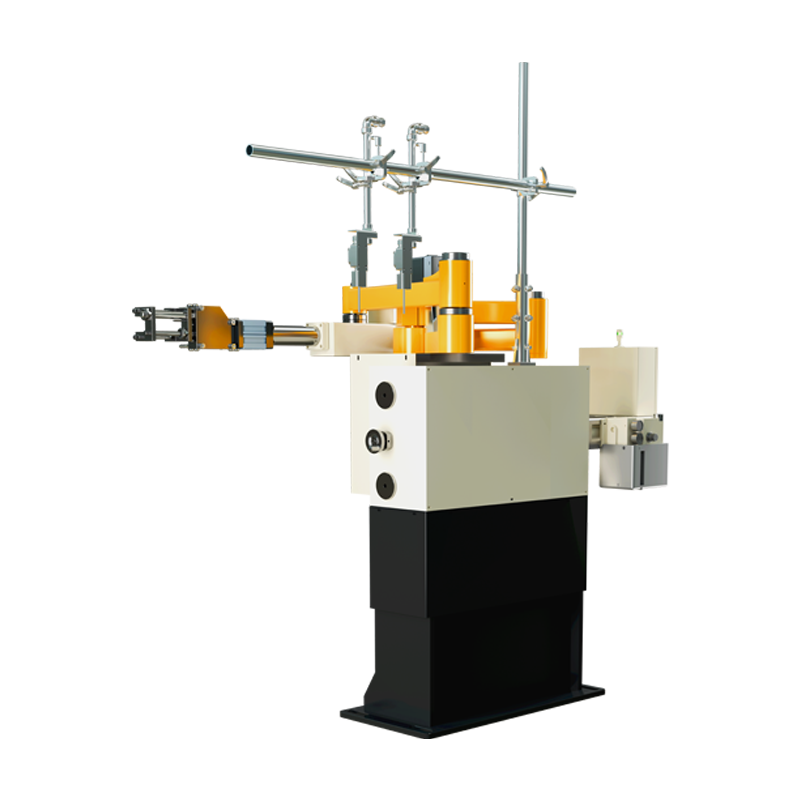

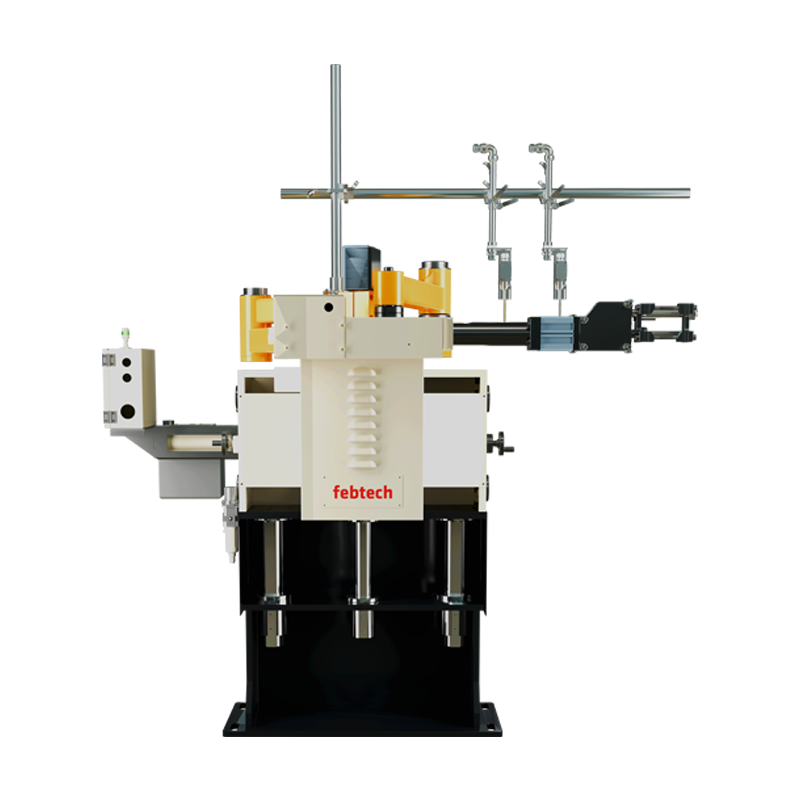

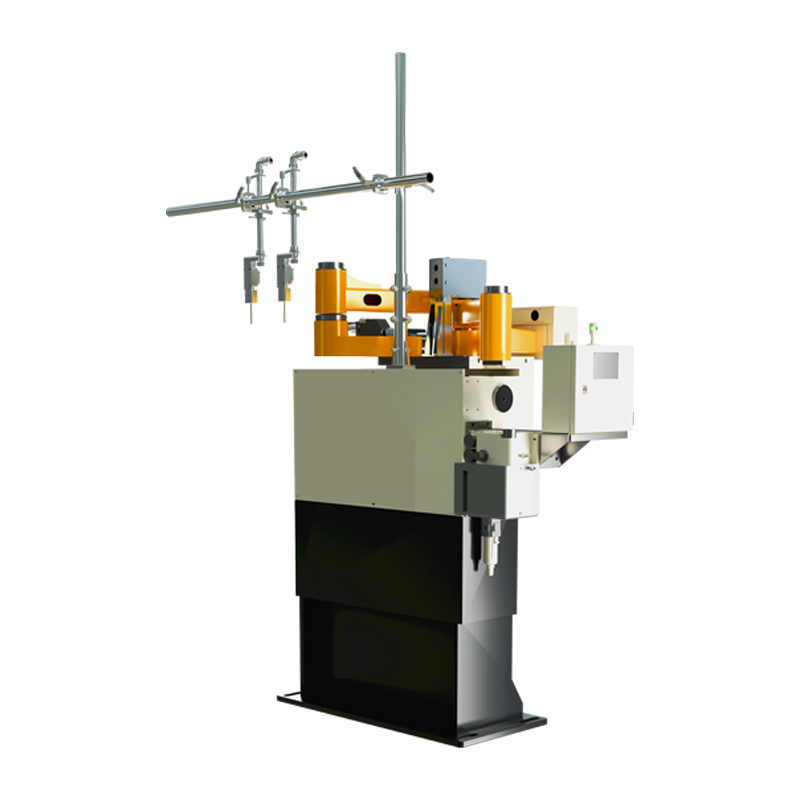

Automatic Extractor
Model
FEBTECH-0320
About This Product
The Automatic Extractor features a multi-linkage arm with a robust loading capacity, designed to work efficiently and stably, delivering results without any compromise. This advanced machinery is equipped with a powerful motor, precise control through a frequency converter, and a PLC (Programmable Logic Controller) for enhanced overall performance.
With a waiting function in the arm, our extractor significantly improves working efficiency, allowing for smoother production cycles. The adoption of Mitsubishi PLC control further enhances system stability, providing meticulous supervision of every movement. This advanced control system offers operators precise control, making it convenient for both operation and maintenance.
The extractor seamlessly integrates with other industrial equipment, such as die cast machines, sprayers, ladlers, and press machines, forming a complete and automated production line. Its adaptability to various extraction modes ensures flexibility in meeting the diverse needs of modern industrial environments.
Built for durability, our Automatic Extractor utilizes fully imported components, guaranteeing longevity and reliability. The combination of superior design, powerful motor, and advanced control systems ensures that our Automatic Extractor operates seamlessly, meeting and exceeding the demands of today's industrial landscape. Experience the future of industrial automation with our reliable and high-performance Automatic Extractor.
Quick Buyer Answers
What it is
Introducing our cutting-edge Automatic Extractor, a pinnacle of reliability and advanced technology for superior industrial performance. Crafted with a commitment to excellence, this extractor incorporates high-quality componen...
Quote path
Share the machine model, application area, required quantity, plant location, and technical constraints so Feb Tech can recommend the right configuration.
Key Features
Specifications
| Specification | 160-400T | Model 2 | Model 3 |
|---|---|---|---|
| Fixed Mould Width(max) | 900mm | -- | -- |
| Biscuit Diameter | ⌀40-90mm | ⌀60-120mm | ⌀80-140mm |
| Pulling Force | 68kgf | 98kgf | 128kgf |
| Adjustable Distance of pulling direction | 300mm | 400mm | 450mm |
| Arm force | 680kgf | 1000kgf | 1000kgf |
| Air Pressure | 4-6.5kgf/cm² | 4-6.5kgf/cm² | 4-6.5kgf/cm² |
| Air Inlet | 3/8" BSP | 3/8" BSP | 3/8" BSP |
| Casting Weight | Max 4kg | Max 8kg | Max 15kg |
| Mounting Method | Ground Mounting | Ground Mounting | Ground Mounting |
| Height adjustment Range | 150mm | 200mm | 250mm |
| Control Power | 24 V DC | 24 V DC | 24 V DC |
| Input Power | 415V 3Ph, 50Hz | 415V 3Ph, 50Hz | 415V 3Ph, 50Hz |
| Electrical Hardwares | Mitsubishi | Mitsubishi | Mitsubishi |
| Control System | Mitsubishi & Delta | Mitsubishi & Delta | Mitsubishi & Delta |
| Pneumatics | SMC | SMC | SMC |
| Color | Grey + Yellow + White | Grey + Yellow + White | Grey + Yellow + White |
| SPECIFICATION | FEBTECH-0320 | FEBTECH-0330 | FEBTECH-0330A |
Product Videos
Frequently Asked Questions
What is Automatic Extractor used for?
Automatic Extractor is used in aluminum die casting operations as part of Feb Tech Industries' 1734951101865 range. It supports production teams that need reliable equipment, repeatable process control, and practical plant-floor service support.
Which die casting process does Automatic Extractor support?
Automatic Extractor is intended for aluminum die casting and related foundry workflows. It is most relevant for plants evaluating automation for machine integration, maintenance improvement, or process optimization.
Can Automatic Extractor be customized?
Feb Tech can review Automatic Extractor requirements against the buyer's machine layout, production target, application constraints, and service needs before quotation. Customization depends on the product type and technical feasibility.
What information is needed to request a quote for Automatic Extractor?
Buyers should share the machine model, application area, alloy or process context, required quantity, site location, and any drawings or technical constraints. This helps Feb Tech recommend the right automation configuration.
Does Automatic Extractor require maintenance or service planning?
Like most industrial die casting equipment and spares, Automatic Extractor should be reviewed as part of the plant's preventive maintenance and operating procedure. Feb Tech can advise on service considerations during technical discussion. The listed model reference is FEBTECH-0320.
