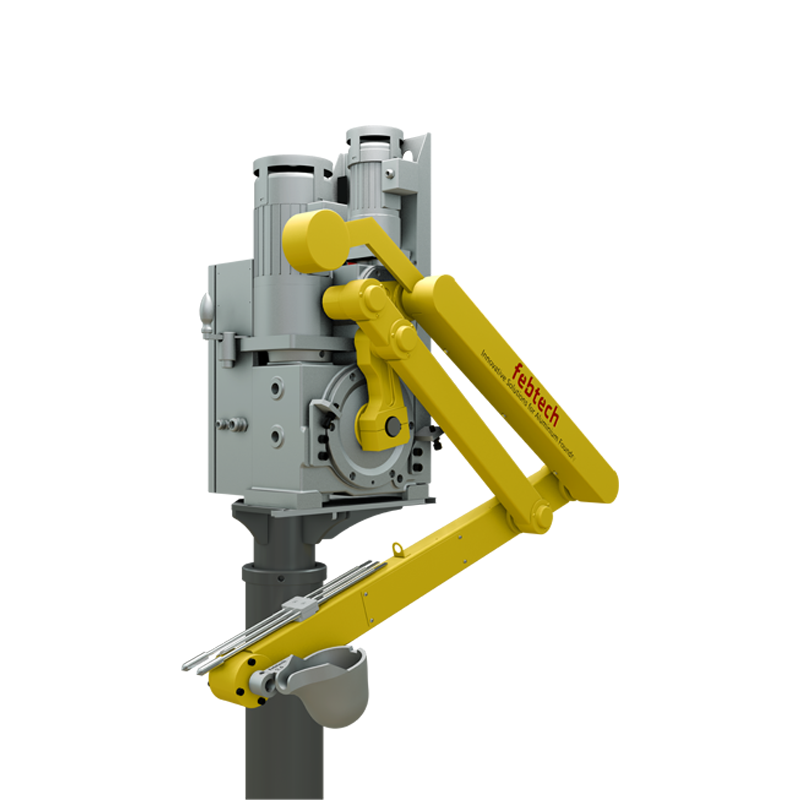

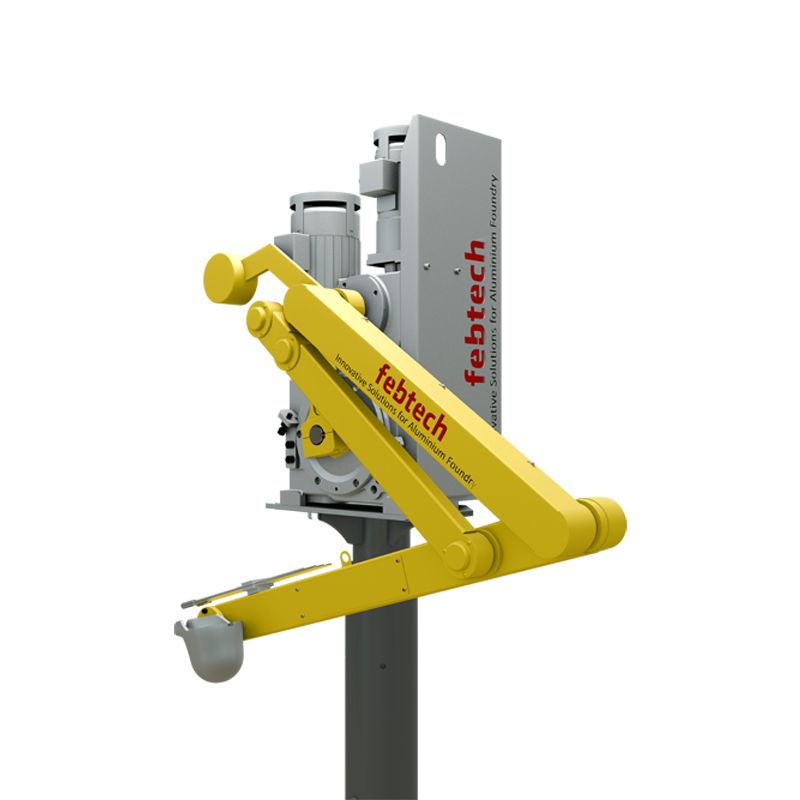

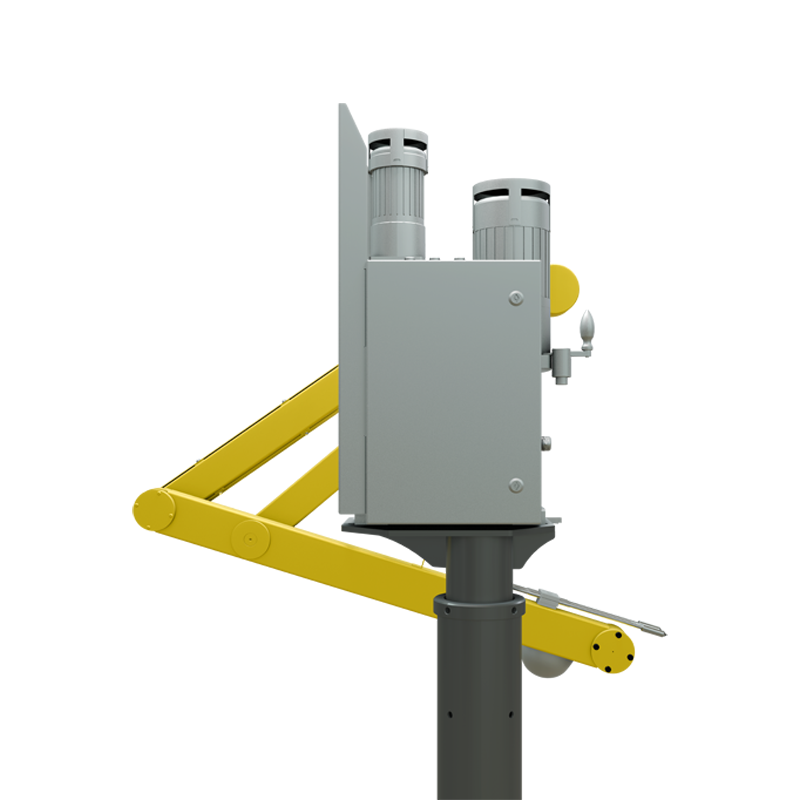

Auto Ladle Machine
Model
FEBTECH-0090
About This Product
Operators will appreciate the user-friendly controls that allow for simple speed adjustment and overall operation. The machine pours with accuracy, stopping at exact positions for precise molten aluminum delivery. Use the encoder-controlled system to easily adjust pouring capacity to your exact specifications.
At the core of our Auto Ladle Machine is the trusted Mitsubishi control system and electrical components, offering the renowned reliability of Japanese engineering. The control panel is CE certified for compliance with the latest safety standards.
Advanced features such as self-diagnosing and alarm systems enable quick troubleshooting for minimal downtime. With stable, precise pouring capacity, user-friendly controls, and an intelligent diagnostic system, our Auto Ladle Machine takes the guesswork out of molten aluminum delivery.
Quick Buyer Answers
What it is
Experience precision and reliability with our Auto Ladle Machine for stable molten aluminum pouring. The five-point-linkage structure and self-lubricating bearings provide exceptional stability for consistent, high-volume produ...
Quote path
Share the machine model, application area, required quantity, plant location, and technical constraints so Feb Tech can recommend the right configuration.
Kelvin Specialties — Technology Partner
3x extended ladle service life
Recommended Chemical for This Equipment
For optimal performance with this equipment, Feb Tech's technology partner Kelvin Specialties recommends KelviCoat - premium boron-titanium ladle shield independently developed and validated on Feb Tech automation systems.
KelviCoat — Premium Boron-Titanium Ladle Shield
Compatible with Automatic Ladling Machine. Up to 5,000–7,000 shots per application, near-zero aluminum pickup, and minimal re-coating downtime.
Kelvin Specialties is an independent company. Feb Tech Industries recommends their products based on validated performance compatibility. Both companies maintain separate commercial and operational independence.
Key Features
Specifications
| Specification | FEBTECH-0090 | FEBTECH-0100 | FEBTECH-0110 | FEBTECH-0110A | Model 5 |
|---|---|---|---|---|---|
| Suitable Machine Capacity | 180T-400T | 500-800T | 1000-1250T | 1600-2000T | -- |
| Pouring Capacity | 0.5 to 8 kgs | 0.5 to 12kgs | 5-15 kgs | 15-25 kgs | -- |
| Pouring Accuracy | ±2% | ±2% | ±2% | ±2% | ±2% |
| Cycle Time | 15 Sec | 18 Sec | 18 Sec | 20 sec | -- |
| Diameter of Crucible | Min 500mm | Min 600mm | Min 850mm | Min 900mm | -- |
| Ladle Arm Dipping | 350mm | 450mm | 550mm | 700mm | -- |
| Arm Motor Capacity | 0.75Kw | 0.75Kw | 1.5Kw | 2.2Kw | -- |
| Ladle Motor Capacity | 0.37Kw | 0.37Kw | 0.37Kw | 0.75Kw | -- |
| Input Power | 415V 50 Hz | 415V 50 Hz | 415V 50 Hz | 415V 50 Hz | -- |
| Control Powar | 24 V DC | 24 V DC | 24 V DC | 24 V DC | -- |
| Input Power | 415V, 3ph 50Hz | 415V, 3ph 50Hz | 415V, 3ph 50Hz | 415V, 3ph 50Hz | -- |
| Electrical Hardwares | Mitsubishi | -- | -- | -- | -- |
| Control System | Mitsubishi & Delta | Mitsubishi & Delta | Mitsubishi & Delta | Mitsubishi & Delta | -- |
| Color | Silver + Yellow | Silver + Yellow | Silver + Yellow | Silver + Yellow | -- |
| Machine Size : (LxHxW) | 92x110x140 | 80x90x55 | 150x210x81.5 | 150x210x81.5 | -- |
| Packing Size : (LxHxW) | 102x115x150 | 90x100x65 | 152x220x91.5 | 152x220x91.5 | -- |
| Net & Gross Weight | 351 / 411 | 351 / 411 | 699 / 958 | 598 / 746 | -- |
Product Videos
Frequently Asked Questions
What is Auto Ladle Machine used for?
Auto Ladle Machine is used in aluminum die casting operations as part of Feb Tech Industries' 1705385585207 range. It supports production teams that need reliable equipment, repeatable process control, and practical plant-floor service support.
Which die casting process does Auto Ladle Machine support?
Auto Ladle Machine is intended for aluminum die casting and related foundry workflows. It is most relevant for plants evaluating automation for machine integration, maintenance improvement, or process optimization.
Can Auto Ladle Machine be customized?
Feb Tech can review Auto Ladle Machine requirements against the buyer's machine layout, production target, application constraints, and service needs before quotation. Customization depends on the product type and technical feasibility.
What information is needed to request a quote for Auto Ladle Machine?
Buyers should share the machine model, application area, alloy or process context, required quantity, site location, and any drawings or technical constraints. This helps Feb Tech recommend the right automation configuration.
Does Auto Ladle Machine require maintenance or service planning?
Like most industrial die casting equipment and spares, Auto Ladle Machine should be reviewed as part of the plant's preventive maintenance and operating procedure. Feb Tech can advise on service considerations during technical discussion. The listed model reference is FEBTECH-0090.
