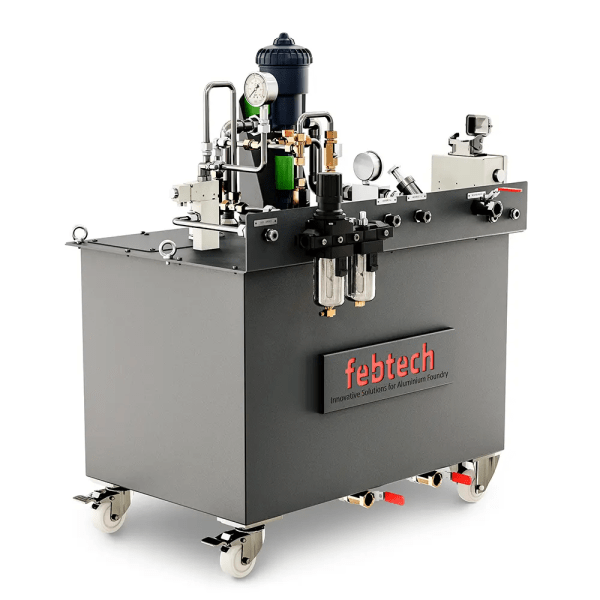

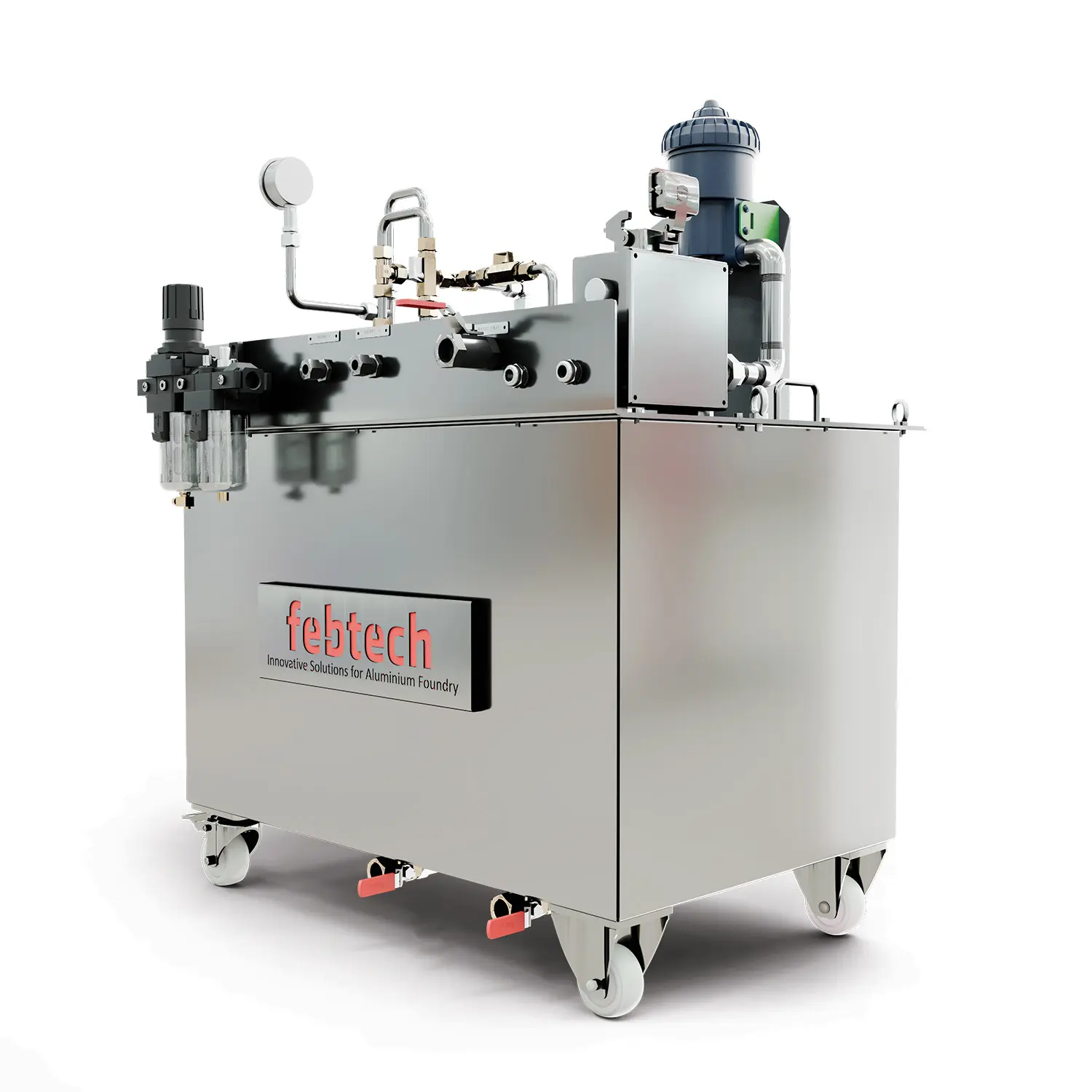

Die Coat Container with mixing unit
Die Coat Container with mixing unit
Automation : -
Our fully mechanical automated Die Coat Mixing Unit is designed for optimal conditioning and precise transport of release agents to die spraying machines. This state-of-the-art unit eliminates the need for cumbersome manual mixing, ensuring that release agent is available on demand. By producing the release agent mixture only when needed, it eliminates the issue of stagnant and partially segregated emulsions formed long before application.
Key Features
| 1 | On-Demand Mixing: Produces release agent mixtures only when needed, eliminating issues caused by stagnant or separated emulsions. |
| 2 | Proportional Dosing Pump: Offers precise dosing within a standard range of 0.5% to 2.5% for consistent results. |
| 3 | Adjustable Medium Pressure: Allows individual pressure adjustments up to a maximum of 8 bar for optimal spray dynamics. |
| 4 | Economical Operation: Minimizes consumption of release agent concentrate through accurate and efficient mixing. |
| 5 | Fresh Release Agent: Guarantees freshly mixed solutions for enhanced die lubrication and release performance. |
| 6 | User-Friendly Design: Features optional components like an indicator light and backflow preventer for easy operation and maintenance. |
| 7 | Efficient Process: Improves the overall consistency, reliability, and efficiency of the die-casting process. |
Product Specifications
| SPECIFICATION | DETAILS |
| Die Coat Supply Range | 1 HPDC Machine |
| Operating Pressure | 4-6 KG/CM² |
| Mixing Type | On-Demand Mixing |
| Dosing Pump Range | 0.5% - 2.5% (1:200 to 1:40 ratio) |
| Pump Accuracy | ± 1% |
| Pressure Adjustment | Individually adjustable up to 8 bar |
| Release Agent Supply | Supplied via downstream pressure stage |
| Operation Type | Fully Mechanical Automated |
| Color | Gray |
| Machine Size L X W X H (mm) | 850 X 565 X 740 |
| Packing Size L X W X H (mm) | 1000 X 650 X 850 |
| Machine Weight (kg) | 96 |
