Die Casting
1747902115091

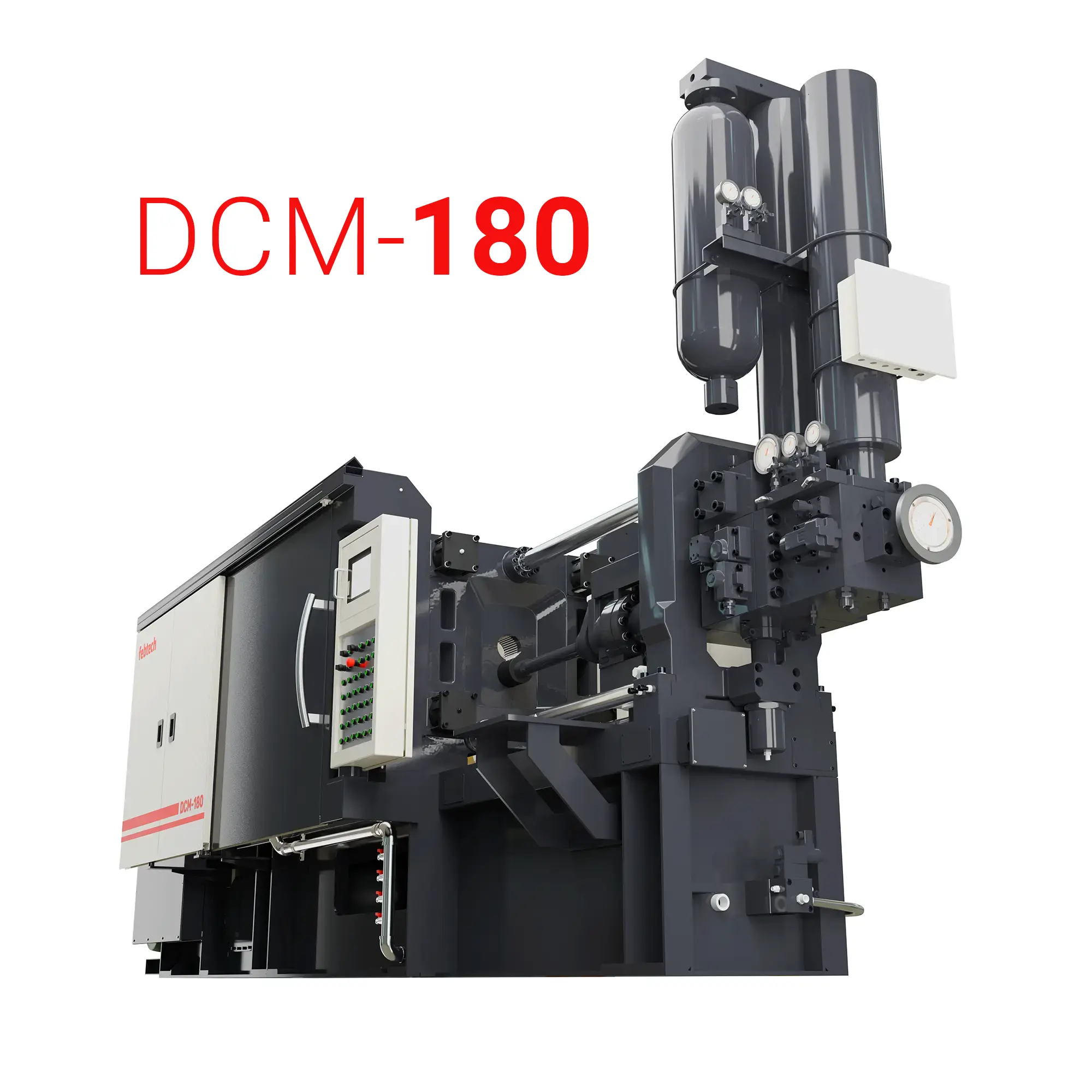

Febtech's DCM-180
Model
DCM-180
1 / 4
About This Product
The Febtech DCM-180T Die Casting Machine is a compact yet powerful solution designed for precision casting in medium-scale industrial applications. With a strong 180-ton clamping force, it efficiently handles intricate components across automotive, electronics, and consumer goods sectors. Built for reliability and accuracy, it offers both automatic and manual modes to suit varied production needs. Its space-saving design ensures easy installation, while intuitive controls enhance operational efficiency and reduce downtime—making it ideal for consistent, high-quality output in demanding environments
Key Features
Robust Locking Force: Provides stable clamping for precise, high-quality casting across various component sizes.
Dual Operation Modes: Offers both automatic and manual controls for adaptable production and ease of use.
Precision Injection System: Ensures accurate metal flow and consistent shot performance for defect-free castings.
Compact Design: Space-efficient structure allows easy installation and seamless integration into existing setups.
User-Friendly Controls: Intuitive interface enhances operational efficiency and reduces training and downtime.
Wide Application Compatibility: Suitable for automotive, electronics, and consumer goods industries requiring reliable die casting.
Specifications
| Specification | DETAILS |
|---|---|
| Locking Force (kN) | 1800 |
| Locking Stroke (mm) | 380 |
| Space Between Tie Bars (mm) | 460x460 |
| Die Height (Min. - Max)) in mm | 200-600 |
| Injection Force (kN) | 280 |
| Injection Stroke (mm) | 350 |
| Plunger Diameter (mm) | 50, 60 |
| Injection Weight (AL) in kg | 1.2, 1.8 |
| Casting Pressure (intensifg.) in MPa) | 142, 99 |
| Casting Area (cm2) | 125, 180 |
| Max. Casting Area (40MPa) | 450 |
| Injection Position (mm) | 0, -104 |
| Motor Capacity (kW) | 20 |
| Color | White + Gray |
| Machine Size L X W X H | 5510 X 1410 X 1761 |
| Machine Weight (kg) | 6500 |
