Die Casting
1747902173986

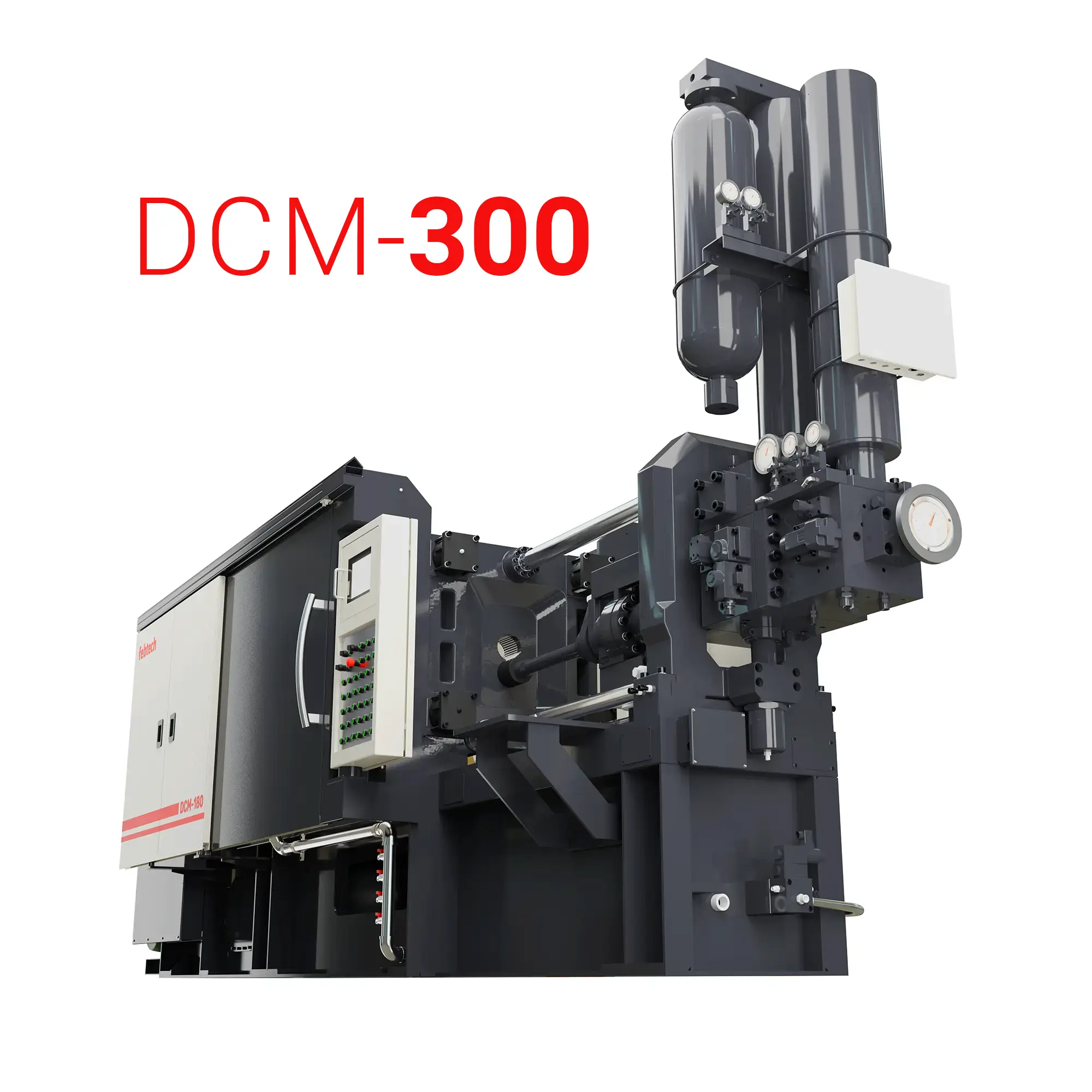

Febtech's DCM-300
Model
DCM-300
1 / 4
About This Product
The Febtech DCM-300 Ton Die Casting Machine is built for superior performance in demanding industrial environments. With an enhanced clamping force of 300 tons and precise control systems, it effortlessly manages complex, large-scale components for industries such as automotive, electronics, and home appliances.
Key Features
Robust Locking Force: Provides stable clamping for precise, high-quality casting across various component sizes.
Dual Operation Modes: Offers both automatic and manual controls for adaptable production and ease of use.
Precision Injection System: Ensures accurate metal flow and consistent shot performance for defect-free castings.
Compact Design: Space-efficient structure allows easy installation and seamless integration into existing setups.
User-Friendly Controls: Intuitive interface enhances operational efficiency and reduces training and downtime.
Wide Application Compatibility: Suitable for automotive, electronics, and consumer goods industries requiring reliable die casting.
Specifications
| Specification | DETAILS |
|---|---|
| Locking Force (kN) | 3000 |
| Locking Stroke (mm) | 460 |
| Space Between Tie Bars (mm) | 570 X 570 |
| Die Height (Min. - Max)) in mm | 250-700 |
| Injection Force (kN) | 330 |
| Injection Stroke (mm) | 410 |
| Plunger Diameter (mm) | 50, 60, 70 |
| Injection Weight (AL) in kg | 1.5, 2.1, 2.9 |
| Casting Pressure (intensifg.) in MPa) | 142, 99 |
| Casting Area (cm2) | 168, 116, 85 |
| Max. Casting Area (40MPa) | 178, 255, 349 |
| Injection Position (mm) | 750 |
| Motor Capacity (kW) | 22 |
| Color | White + Gray |
| Machine Size L X W X H | 3600 X 1990 X 2650 |
| Machine Weight (kg) | 11280 |
