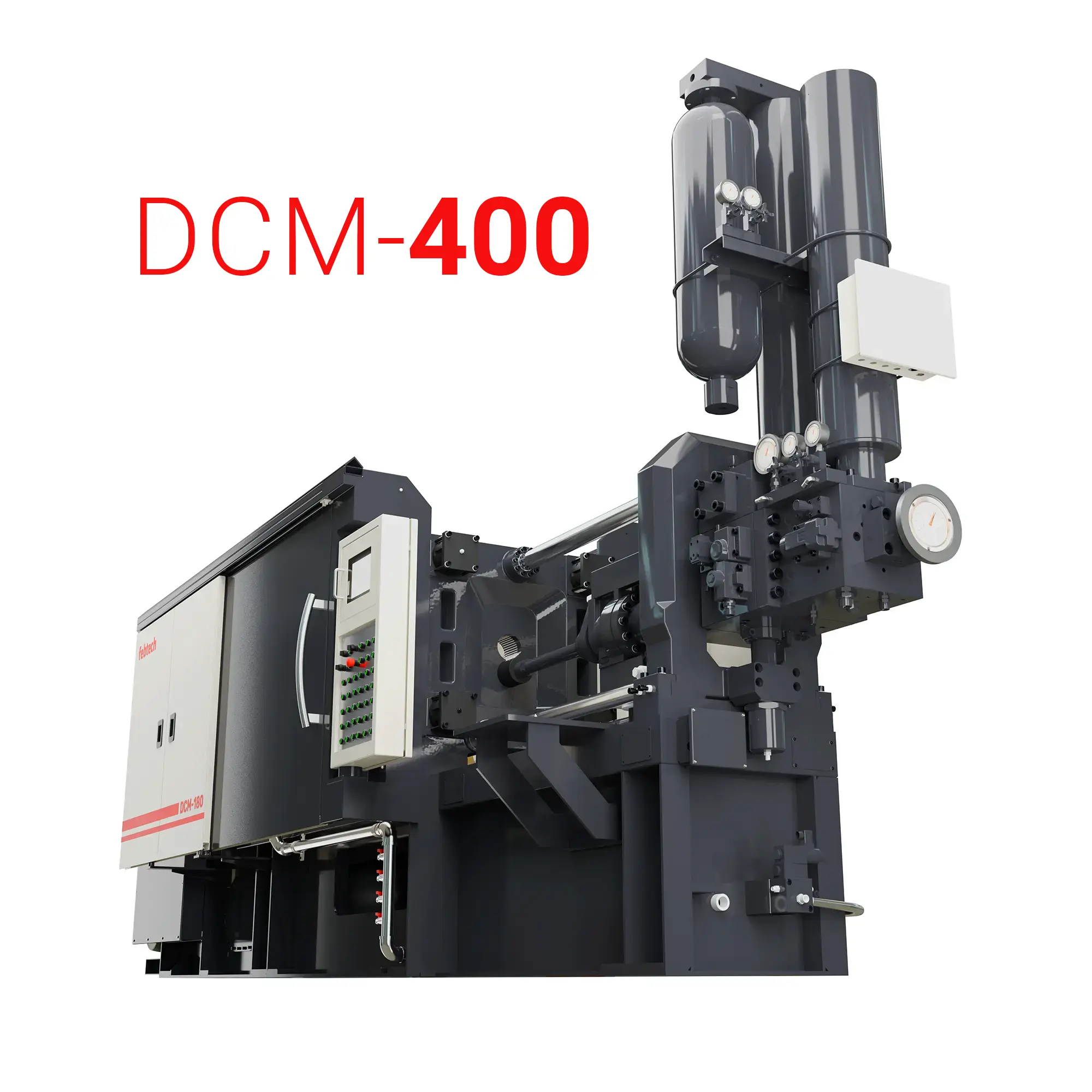

Die Casting : DCM-400
The Febtech DCM-400T Die Casting Machine is engineered for precision, strength, and efficiency in large-scale industrial production. With a powerful 400-ton clamping force, it seamlessly handles complex and high-volume casting tasks across automotive, electronics, and appliance industries. Designed for maximum reliability, it features both automatic and manual operation modes to adapt to varying production requirements. Its compact structure allows easy integration into any setup, while intuitive controls enhance operational speed, reduce downtime, and ensure consistent, high-quality output.
Key Features
| 1 | Robust Locking Force: Provides stable clamping for precise, high-quality casting across various component sizes. |
| 2 | Dual Operation Modes: Offers both automatic and manual controls for adaptable production and ease of use. |
| 3 | Precision Injection System: Ensures accurate metal flow and consistent shot performance for defect-free castings. |
| 4 | Compact Design: Space-efficient structure allows easy installation and seamless integration into existing setups. |
| 5 | User-Friendly Controls: Intuitive interface enhances operational efficiency and reduces training and downtime. |
| 6 | Durable Build Quality: Heavy-duty construction ensures long service life with minimal maintenance. |
| 7 | Wide Application Compatibility: Suitable for automotive, electronics, and consumer goods industries requiring reliable die casting. |
Product Specifications
| SPECIFICAION | DETAILS |
| Locking Force (kN) | 4000 |
| Locking Stroke (mm) | 550 |
| Space Between Tie Bars (mm) | 650 X 650 |
| Die Height (Min. - Max)) in mm | 300 - 750 |
| Injection Force (kN) | 410 |
| Injection Stroke (mm) | 510 |
| Plunger Diameter (mm) | 60, 70, 80 |
| Injection Weight (AL) in kg | 2.7, 3.6, 4.8 |
| Casting Pressure (intensifg.) in MPa) | 145, 106, 81 |
| Casting Area (cm2) | 275, 375, 490 |
| Max. Casting Area (40MPa) | 1000 |
| Injection Position (mm) | 0, -175 |
| Motor Capacity (kW) | 30 |
| Color | White + Gray |
| Machine Size L X W X H | 7450 X 2090 X 2750 |
| Machine Weight (kg) | 16350 |
