Servo Sprayer Two Axis

Model

FEBTECH-0120

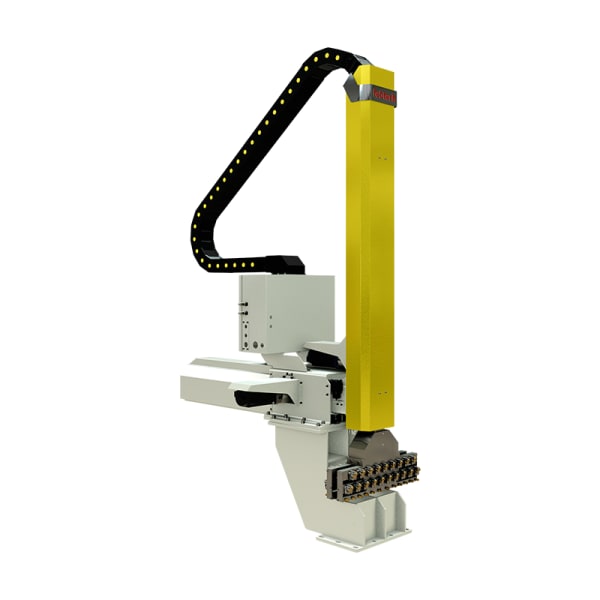

Servo Sprayer Two Axis
1 / 9
Servo Sprayer Two Axis view 1
Servo Sprayer Two Axis view 2
Servo Sprayer Two Axis view 3
Servo Sprayer Two Axis view 4
Servo Sprayer Two Axis view 5
Servo Sprayer Two Axis view 6
Servo Sprayer Two Axis view 7

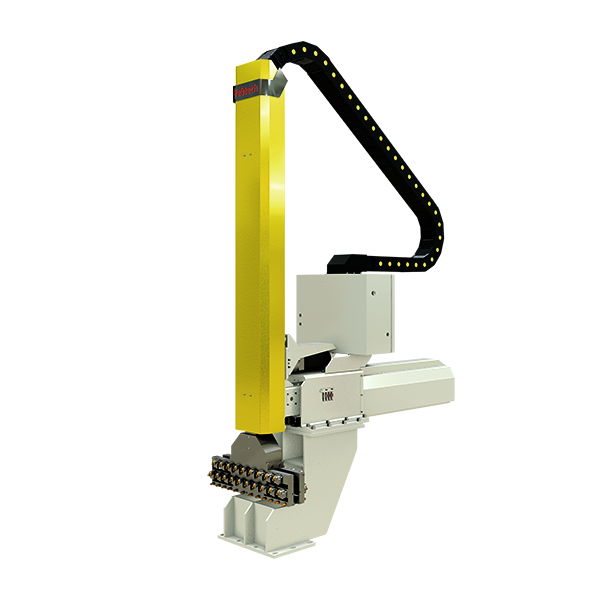

Servo Sprayer Two Axis view 8
Servo Sprayer Two Axis view 9

About This Product

The Two-Axis Servo Sprayer represents a cutting-edge solution designed to elevate the precision and efficiency of die-casting operations. With advanced servo motors governing two axes of movement, this state-of-the-art sprayer excels in applying coatings or treatments with exceptional accuracy. Its seamless integration with die-casting machines ensures that each spray aligns perfectly with the contours and specific requirements of the die-casting process. Febtech Industries introduces the Two-Axis Servo Sprayer, a revolutionary system that establishes new benchmarks in precision and efficiency for die-casting operations. Engineered to perfection, this system utilizes servo motors to control movement along two axes, guaranteeing that every spray application is executed with the utmost accuracy.

Quick Buyer Answers

What it is

The Two-Axis Servo Sprayer represents a cutting-edge solution designed to elevate the precision and efficiency of die-casting operations. With advanced servo motors governing two axes of movement, this state-of-the-art sprayer...

Quote path

Share the machine model, application area, required quantity, plant location, and technical constraints so Feb Tech can recommend the right configuration.

Kelvin Specialties — Technology Partner

Up to 40% better surface finish with reduced die maintenance

Recommended Chemical for This Equipment

For optimal performance with this equipment, Feb Tech's technology partner Kelvin Specialties recommends KelviRelease UltraCast - premium die release agent independently developed and validated on Feb Tech automation systems.

KelviRelease UltraCast — Premium Die Release Agent

Compatible with Servo Sprayer Two Axis. More stable release performance, improved casting finish, and lower die servicing pressure.

Learn About KelviRelease UltraCastAbout Our PartnershipGuide: Select and apply die casting release agents

Kelvin Specialties is an independent company. Feb Tech Industries recommends their products based on validated performance compatibility. Both companies maintain separate commercial and operational independence.

Key Features

Servo System: Utilizes advanced servo technology for precise control and stability during the spraying process.
X & Y Axis Positional Control: Ability to stop at any position along the X and Y axes for precise spraying and air blowing, enhancing the quality of die-casting finishes.
Multi-Functional & Programmable: Offers multiple functions and the ability to program various spraying patterns to suit different die-casting moulds and applications.
Six Modular Sprayer Blocks: Features six programmable sprayer blocks for customized spraying operations, improving the adaptability to different die-casting projects.
High Precision RV Reduction Gear: Incorporates a high precision RV reduction gear for smooth and accurate motion, essential for maintaining consistency in die-casting coatings.
Program Saving Capability: Allows operators to save machine spraying programs according to specific die or mould parameters, facilitating quick setups and efficient changeovers.
Die-Casting Machine Integration: Designed to interface effortlessly with any die-casting machine, this sprayer is a versatile addition to the die-casting industry, streamlining the coating and treatment process.

Specifications

SpecificationFEBTECH-0120FEBTECH-0130FEBTECH-0140FEBTECH-0150
Suitable Machine Capacity250T-440T500-800T1000-1600T2000-2500T
Spray Nozzle For Fixed Side 10pcs 19 pcs 19 pcs 24 pcs
Spray Nozzle For Moving Side 10pcs19 pcs 19 pcs 24 pcs
Air Blowing Nozzle Fix Side 8pcs 12 pcs 10 pcs13 pcs
Air Blowing Nozzle Moving Side 8pcs 12 pcs 10 pcs13 pcs
Sprayer Head covered width300-380400-530mm600mm730mm
Sprayer head thickness150mm220mm240mm240mm
Air Pressure 5-6kgf/cm²5-6kgf/cm²5-6kgf/cm²5-6kgf/cm²
Air Pressure Inlet Port 1''BSP1''BSP11/4" BSP x 211/4" BSP x 2
Ascending Time 1s1.3s1.5s2s
Descending Time 1s1.3s1.5s2s
X Axis Servo Motor 1.0 kw 1.5 kw1.5 kw1.5 kw
Y Axis Servo Motor 2.0 kw 2.0 kw 2.2 kw 2.2 kw
Control Power 24 V DC 24 V DC 24 V DC 24 V DC
Input Power 415V, 3ph 50 Hz 415V, 3ph 50 Hz 415V, 3ph 50 Hz 415V, 3ph 50 Hz
Electrical HardwaresSiemens Siemens Siemens Siemens
Control System Mitsubishi Mitsubishi Mitsubishi Mitsubishi
Pneumatics SMC SMC SMC SMC
Color White + YellowWhite + YellowWhite + YellowWhite + Yellow

Product Videos

Frequently Asked Questions

What is Servo Sprayer Two Axis used for?

Servo Sprayer Two Axis is used in aluminum die casting operations as part of Feb Tech Industries' 1734951264917 range. It supports production teams that need reliable equipment, repeatable process control, and practical plant-floor service support.

Which die casting process does Servo Sprayer Two Axis support?

Servo Sprayer Two Axis is intended for aluminum die casting and related foundry workflows. It is most relevant for plants evaluating automation for machine integration, maintenance improvement, or process optimization.

Can Servo Sprayer Two Axis be customized?

Feb Tech can review Servo Sprayer Two Axis requirements against the buyer's machine layout, production target, application constraints, and service needs before quotation. Customization depends on the product type and technical feasibility.

What information is needed to request a quote for Servo Sprayer Two Axis?

Buyers should share the machine model, application area, alloy or process context, required quantity, site location, and any drawings or technical constraints. This helps Feb Tech recommend the right automation configuration.

Does Servo Sprayer Two Axis require maintenance or service planning?

Like most industrial die casting equipment and spares, Servo Sprayer Two Axis should be reviewed as part of the plant's preventive maintenance and operating procedure. Feb Tech can advise on service considerations during technical discussion. The listed model reference is FEBTECH-0120.
