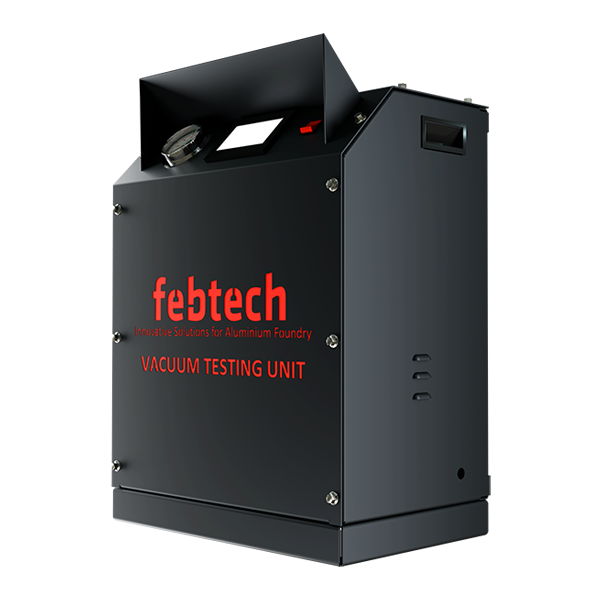

Vacuum Testing Unit / Reduced Pressure Tester
Model
FEBTECH-0270
1 / 9
About This Product
The Vacuum Porosity Tester is a compact, high-quality system designed to assess the porosity levels in molten aluminum under vacuum conditions. Ideally suited for quick, consistent, and reliable testing, it can be conveniently positioned near furnaces for precise on-the-spot quality control.
This device conducts a qualitative analysis of the gas content in molten aluminum, providing early detection of potential defects such as porosity and blowholes, which are common issues in aluminum casting production. With this early detection, corrective measures can be taken to ensure the aluminum is gas-free before casting.
Engineered for simplicity, the unit automates the testing process with the push of a start button. It quickly reaches the desired vacuum level, maintains it for a predetermined period, and then reintroduces fresh air into the chamber, resetting the system for the next test.
This device conducts a qualitative analysis of the gas content in molten aluminum, providing early detection of potential defects such as porosity and blowholes, which are common issues in aluminum casting production. With this early detection, corrective measures can be taken to ensure the aluminum is gas-free before casting.
Engineered for simplicity, the unit automates the testing process with the push of a start button. It quickly reaches the desired vacuum level, maintains it for a predetermined period, and then reintroduces fresh air into the chamber, resetting the system for the next test.
Key Features
Compact Desktop Design: Ideal for placement near furnaces for on-site monitoring.
Quality Control: Enables accurate monitoring of quality standards in molten aluminum.
Qualitative Analysis: Assesses gas content to detect potential defects like porosity and blowholes.
Early Defect Detection: Allows for immediate corrective action to ensure gas-free aluminum before casting.
Automated Testing Process: Simple operation with a start button to initiate automatic testing.
Quick Reset: Fresh air release after testing prepares the unit for subsequent tests.
Specifications
| Specification | FEBTECH-0270 |
|---|---|
| Vacuum Rang | 0-700mmHg |
| Cycle time | 0-2 Minutes |
| Vacuum Display | Analog |
| Electrical Hardwares | Siemens |
| Control System | Delta |
| Input Voltage | 220 V AC |
| Color | Gray |
| Machine Size: (L x H x W) cm | 55 x 75 x 36 |
| Packing Size: (L x H x W) cm | 65 x 85 x 46 |
| Net & Gross Weight Kgs | 38.5 / 57 |
